| 产品特性：性能 | 是否进口：否 | 产地：纸箱 |
| 加工定制：否 | 类型：波形信号发生器 | 品牌：Agilent/安捷伦 |
| 型号：N5183B | 频率：1000MHz | 电平：20V |
| 外形尺寸：10mm | 重量：20kg | 成色：八成新 |

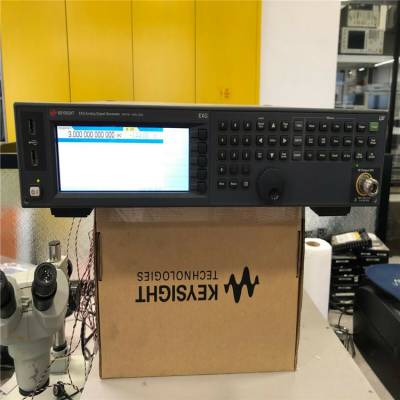

40G原装全新信号发生器N5183B
主要特性与技术指标
Signal characteristics
9 kHz to 13, 20 31.8 or 40 GHz
+20 dBm output power at 20 GHz
-124 dBc/Hz phase noise at 10 GHz and 10 kHz offset
-75 dBc non-harmonics at 10 GHz and >10 kHz offset
Modulation and sweep
AM, FM, ?M and narrow pulse
Pulse train generator
10 MHz multifunction generator and LF out
Digital step and list sweep modes with <600 ?s switching speed
Automation and communication interfaces
1000BaseT LAN, LXI, USB 2.0 and GPIB
SCPI, IVI-COM, MATLAB drivers
Backward compatible with all ESG, MXG, PSG and 8648x signal generators
Keysight USB power sensor compatible with embedded display and SCPI control
